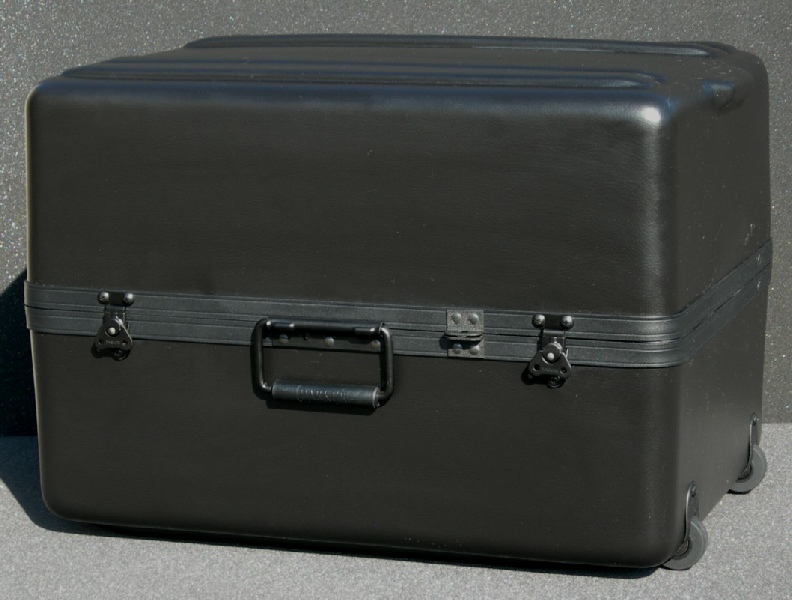

DX2317-16BK EMPTY     25 lbs.

DX2317-16FWBK             26 lbs.



Inside Dimensions:    23½  X 17 ¼  X  16(8 +8 )

Outside Dimensions:  24 ¾  X 19 ½  X 17 ½

Ship as Dimensions:  26 X 22 X  19

Number of  Wheels: 2

DX2317-14BK EMPTY     23 lbs.

DX2317-14FWBK             25 lbs.



Inside Dimensions:    23½  X 17 ¼  X  14(8 + 6 )

Outside Dimensions:  24 ¾  X 19 ½  X 16

Ship as Dimensions:  26 X 22 X 17

Number of  Wheels: 2

DX2215-06BK EMPTY    12 lbs.

DX2215-06FWBK             15 lbs.



Inside Dimensions:    21¾  X 14 ½  X 6 (3 ¼ + 2 ¾  )

Outside Dimensions: 23 ½  X 16 ½ X 8 ¼

Ship as Dimensions:  25 X 18 X 10

Number of  Wheels: 2

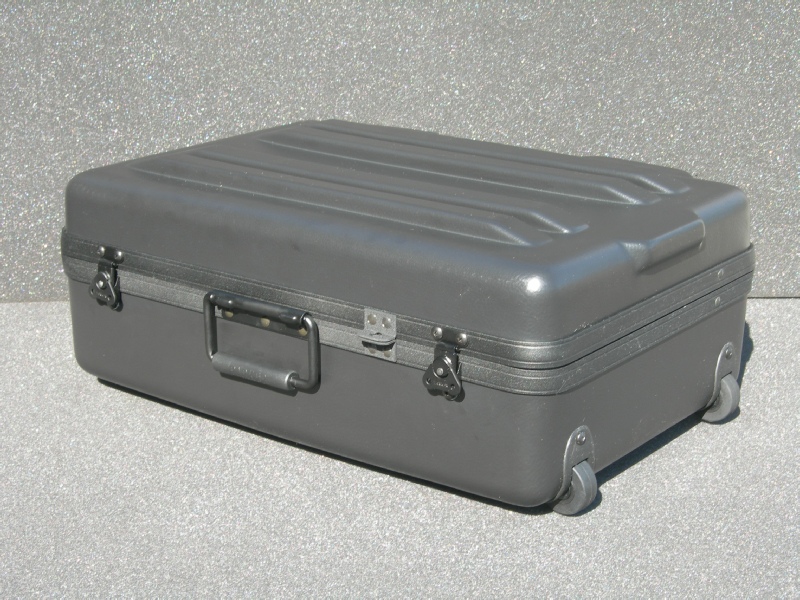

DX2215-08BK EMPTY     14 lbs.

DX2215-08FWBK             15 lbs.



Inside Dimensions:    21¾  X 14 ½  X 8 (5 + 4 )

Outside Dimensions: 23 ½  X 16 ½ X 10

Ship as Dimensions:  25 X 18 X 11

Number of  Wheels: 2

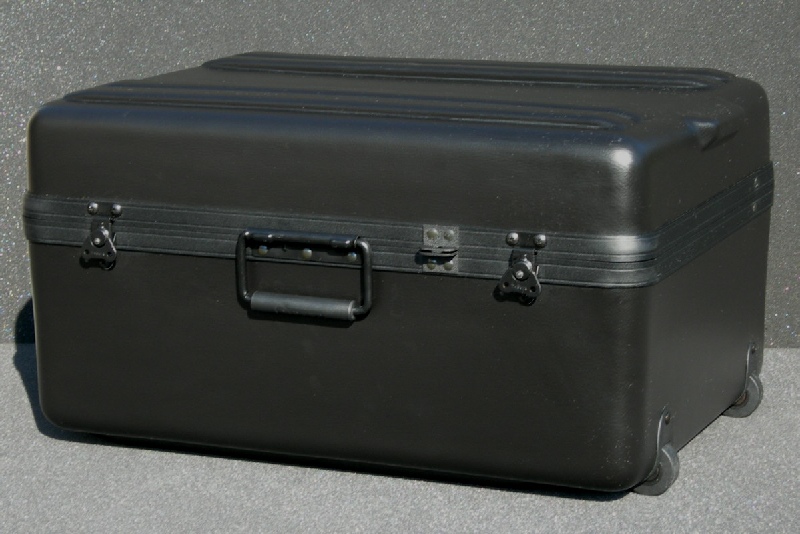

DX2317-12BK EMPTY     21 lbs.

DX2317-12FWBK             24 lbs.



Inside Dimensions:    23½  X 17 ¼  X  12 (8 + 4) Outside Dimensions:  24 ¾  X 19 ½  X 14

Ship as Dimensions:  26 X 22 X 16

Number of  Wheels: 2

DX2421-06BK EMPTY     15 lbs.

DX2421-06FWBK             22 lbs.



Inside Dimensions:    23 ¾ X 20 ¼  X  6 (3 ¼ + 2¾ )

Outside Dimensions:  25 ½  X 22 ½  X 8

Ship as Dimensions:  26 X 24 X 10

Number of  Wheels: 2

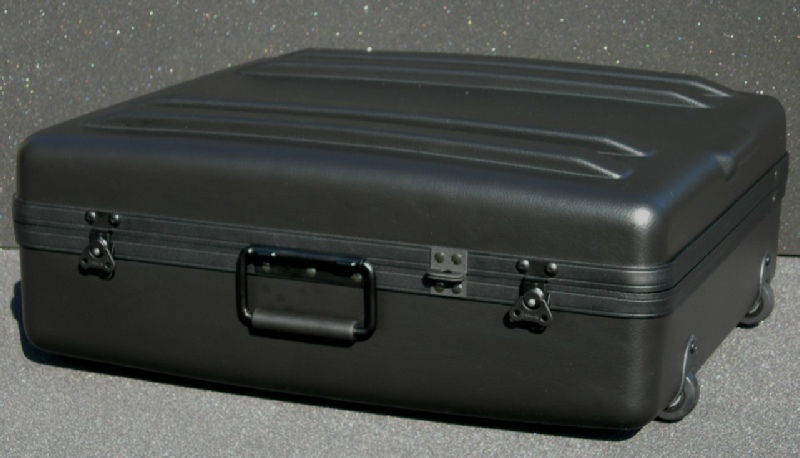

DX2421-08BK EMPTY     17 lbs.

DX2421-08FWBK             24 lbs.



Inside Dimensions:    23 ¾ X 20 ¼  X  8 (5 + 3 )

Outside Dimensions:  25 ½  X 22 ½  X 10

Ship as Dimensions:  26 X 24 X 12

Number of  Wheels: 2

DX2421-10BK EMPTY     19 lbs.

DX2421-10FWBK             26 lbs.



Inside Dimensions:    23 ¾ X 20 ¼  X  10 (6 + 4 )

Outside Dimensions:  25 ½  X 22 ½  X 12

Ship as Dimensions:  26 X 24 X 13

Number of  Wheels: 2

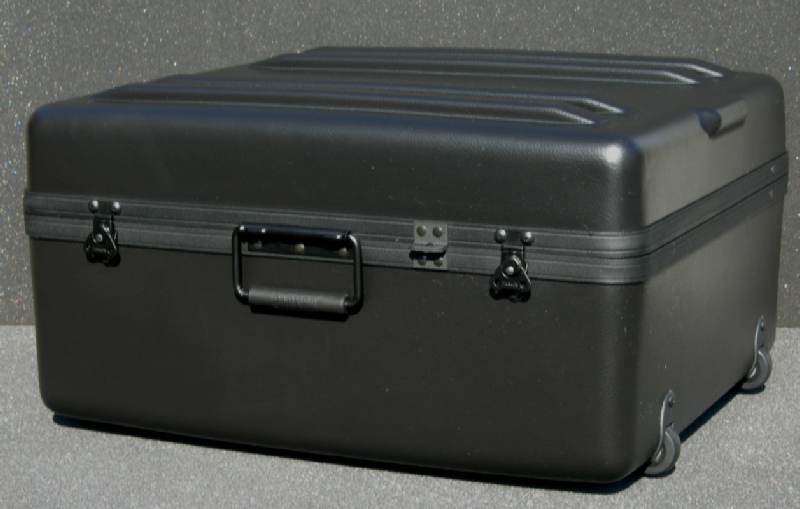

DX2421-12BK EMPTY     21 lbs.

DX2421-12FWBK             28 lbs.



Inside Dimensions:    23 ¾ X 20 ¼  X 12 ( 8 + 4 )

Outside Dimensions:  25 ½  X 22 ½  X 14

Ship as Dimensions:  26 X 24 X 15

Number of  Wheels: 2

DX2421-14BK EMPTY     22 lbs.

DX2421-14FWBK             29 lbs.



Inside Dimensions:    23 ¾ X 20 ¼  X  14 (8 + 6 )

Outside Dimensions:  25 ½  X 22 ½  X 15 ¾

Ship as Dimensions:  26 X 24 X 17

Number of  Wheels: 2



DX2421-16BK EMPTY     24 lbs.

DX2421-16FWBK             26 lbs.



Inside Dimensions:    23 ¾ X 20 ¼  X  16(8 + 8)

Outside Dimensions:  25 ½  X 22 ½  X 18 ½

Ship as Dimensions:  26 X 24 X 19

Number of  Wheels: 2

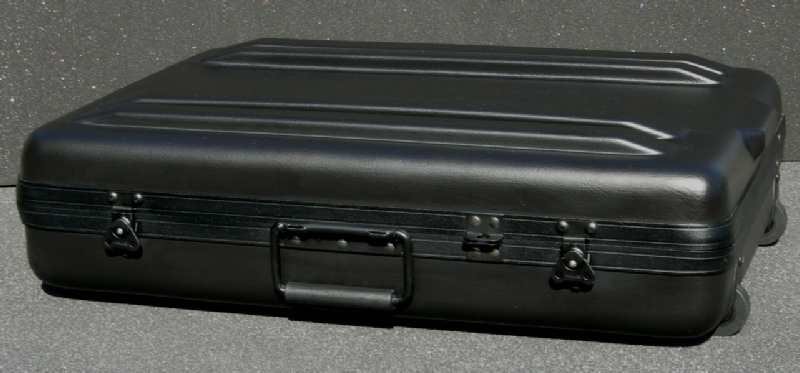

DX2517-06BK EMPTY     16 lbs.

DX2517-06FWBK             22 lbs.



Inside Dimensions:    23 ¾ X 17½  X  6 (3 ¼ + 2¾ )

Outside Dimensions:  26 2/4   X 19 ½ X  8

Ship as Dimensions:  26 X 20 X 09

Number of  Wheels: 2

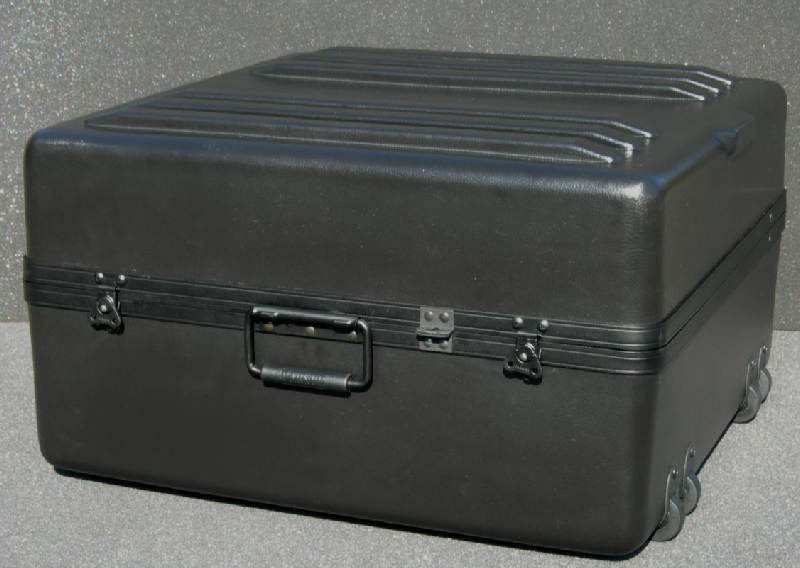

DX2626-14BK EMPTY       27 lbs.

DX2626-14FWBK               35 lbs.



Inside Dimensions:    25 ¾ X 25 ¾   X  14 (8 + 6  )

Outside Dimensions:  27 X 27 ½ X 15 ¾

Ship as Dimensions:  29 X 29 X 17

Number of  Wheels: 4

DX2215-10BK EMPTY      15 lbs.

DX2215-10FWBK              17 lbs.



Inside Dimensions:    21¾  X 14 ½  X 10 (6+ 4 )

Outside Dimensions:  23 ½  X 16 ½ X 10

Ship as Dimensions:  25 X 18 X 13

Number of  Wheels: 2

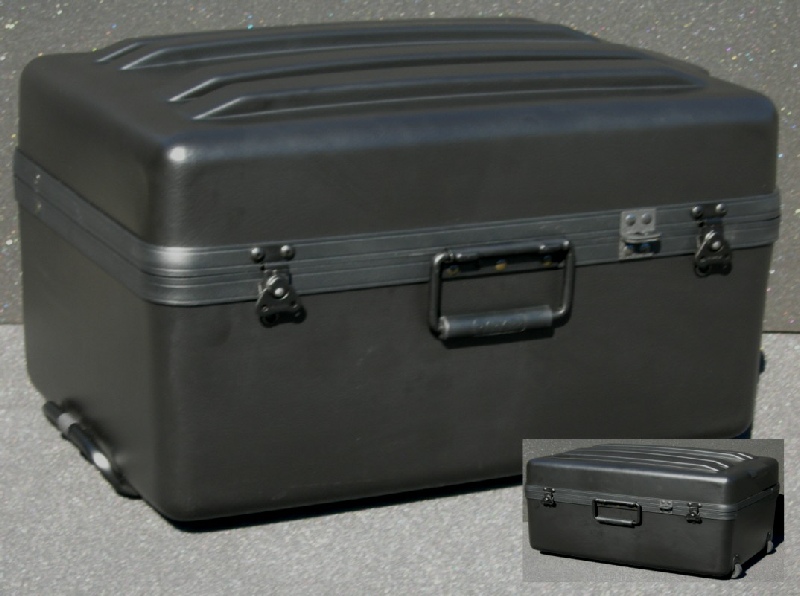

DX2215-12BK EMPTY     12 lbs.

DX2215-12FWBK             15 lbs.



Inside Dimensions:    21¾  X 14 ½  X 12 (8 + 4 )

Outside Dimensions: 23 ½  X 16 ½ X 14 ¼

Ship as Dimensions:  25 X 18 X 15

Number of  Wheels:  2 ea.

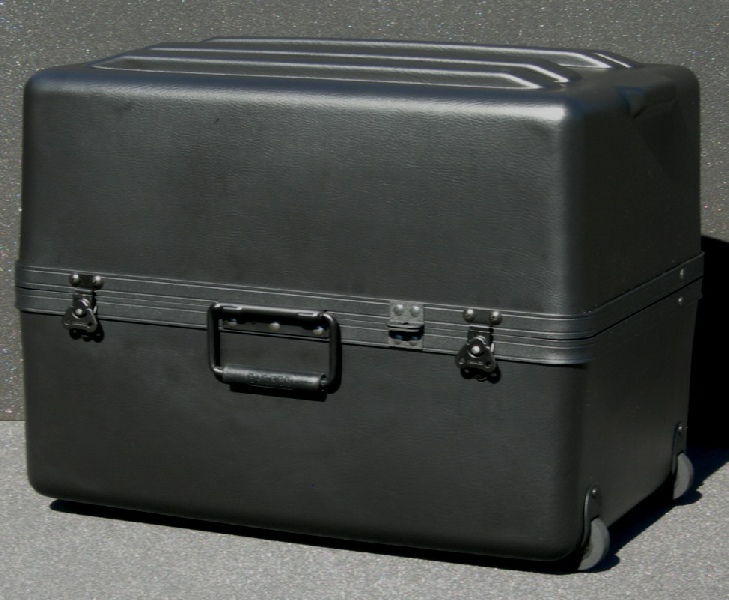

DX2215-16BK EMPTY     21 lbs.

DX2215-16FWBK             20 lbs.



Inside Dimensions:    21¾  X 14 ½  X 16 (8 + 8 )

Outside Dimensions: 23 ½  X 16 ½ X 17 ¾

Ship as Dimensions:  25 X 18 X 18

Number of  Wheels:  2

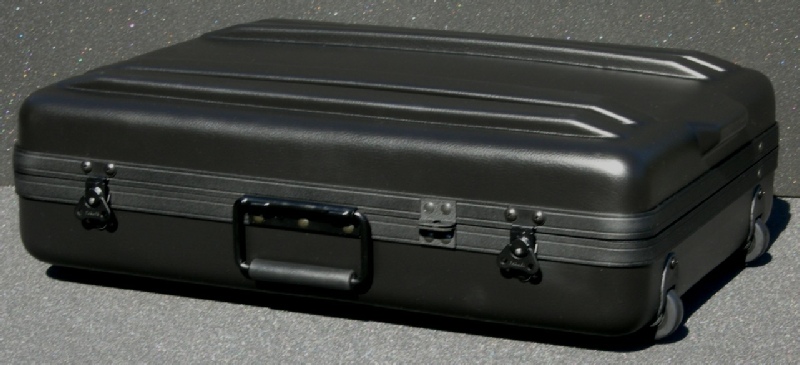

DX2317-06BK EMPTY     16 lbs.

DX2317-06FWBK             21 lbs.



Inside Dimensions:    23½  X 17 ¼  X  6 (3 ¼ + 2¾ )

Outside Dimensions:  24 ¾  X 19 ½  X 8 ¼

Ship as Dimensions:  26 X 22 X 9

Number of  Wheels: 2

DX2317-08BK EMPTY     17 lbs.

DX2317-08FWBK             22 lbs.



Inside Dimensions:    23½  X 17 ¼  X  8 (5 + 3)

Outside Dimensions:  24 ¾  X 19 ½  X 10

Ship as Dimensions:  26 X 22 X 12

Number of  Wheels: 2

DX2317-10BK EMPTY     19 lbs.

DX2317-10FWBK             23 lbs.



Inside Dimensions:    23½  X 17 ¼  X 10 (6+ 4)

Outside Dimensions:  24 ¾  X 19 ½  X 12

Ship as Dimensions:  26 X 22 X 14

Number of  Wheels: 2

DX2215-14BK EMPTY     19 lbs.

DX2215-14FWBK             19 lbs.



Inside Dimensions:    21¾  X 14 ½  X 14 (8 + 6 )

Outside Dimensions: 23 ½  X 16 ½ X 16

Ship as Dimensions:  25 X 18 X 15

Number of  Wheels: 2

DX2517-08BK EMPTY     18 lbs.

DX2517-08FWBK             23 lbs.



Inside Dimensions:    23 ¾ X 17½  X  8 (5 + 3 )

Outside Dimensions:   26 ¾ X 19 ½ X 8

Ship as Dimensions:  28 X 20 X 11

Number of  Wheels: 2



DX2517-10BK EMPTY      19 lbs.

DX2517-10FWBK             24 lbs.



Inside Dimensions:    23 ¾ X 17½  X  10 (6 + 4  )

Outside Dimensions:  26 ¾ X 19 ½ X  12

Ship as Dimensions:  28 X 20 X 14

Number of  Wheels: 2

DX2517-12BK EMPTY      20 lbs.

DX2517-12FWBK              25 lbs.



Inside Dimensions:    23 ¾ X 17½  X  12 (8 + 4  )

Outside Dimensions:  26 ¾ X 19 ½ X 14

Ship as Dimensions:  28 X 20 X 14

Number of  Wheels: 2

DX2517-14BK EMPTY      22 lbs.

DX2517-14FWBK             26 lbs.



Inside Dimensions:    23 ¾ X 17½  X  14 (8 + 6  )

Outside Dimensions: 26 ¾ X 19 ½ X 16

Ship as Dimensions:  28 X 20 X 18

Number of  Wheels: 2

DX251716BK EMPTY      24 lbs.

DX2517-16FWBK             27 lbs.



Inside Dimensions:    23 ¾ X 17½  X  16 (8+ 8 )

Outside Dimensions: 26 ¾ X 19 ½ X 18

Ship as Dimensions:  28 X 20 X 20

Number of  Wheels: 2

DX2626-08BK EMPTY       21 lbs.

DX2626-08FWBK               27 lbs.



Inside Dimensions:    25 ¾ X 25 ¾   X  8 (5 + 3  )

Outside Dimensions:  27 ½ X 27 ½ X 10 ¼

Ship as Dimensions:  29 X 29 X 11

Number of  Wheels: 2

DX2626-10BK EMPTY       23 lbs.

DX2626-10FWBK               30 lbs.



Inside Dimensions:    25 ¾ X 25 ¾   X  10 (6 + 4 )

Outside Dimensions:  27 ½ X 27 ½ X  12 ¼

Ship as Dimensions:  29 X 29 X 13

Number of  Wheels: 2

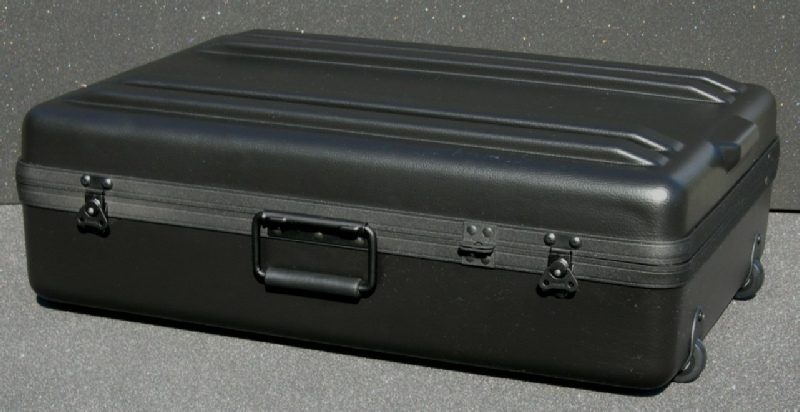

DX2719-08BK EMPTY       18 lbs.

DX2719-08FWBK               24 lbs.



Inside Dimensions:    27 X  19   X  8 (5 + 3  )

Outside Dimensions:  28 ½ X 21 X 10

Ship as Dimensions:  30 X 22 X 11

Number of  Wheels: 2

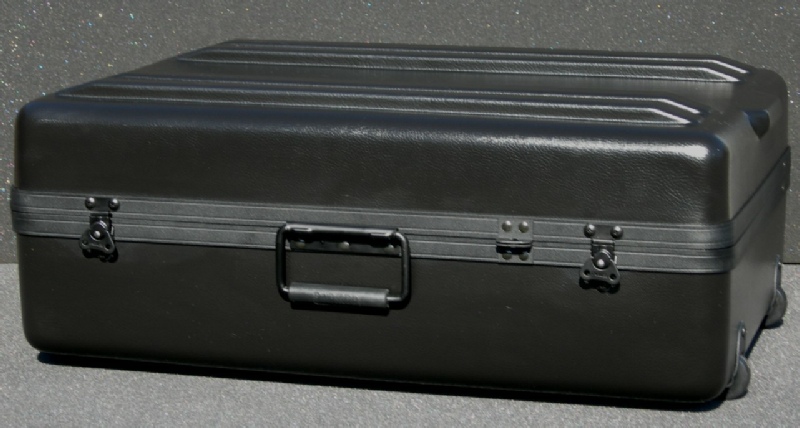

DX2719-10BK EMPTY       19 lbs.

DX2719-10FWBK               25 lbs.



Inside Dimensions:    27 X  19   X  10 (6 + 4 )

Outside Dimensions:  28 ½ X 21 X 12

Ship as Dimensions:  30 X 22 X 13

Number of  Wheels: 2

DX2626-12BK EMPTY       25 lbs.

DX2626-12FWBK               33 lbs.



Inside Dimensions:    25 ¾ X 25 ¾  X  12 ( 8 + 4  )

Outside Dimensions:  27 ½ X 27 ½ X 14 ¼

Ship as Dimensions:  29 X 29 X 15

Number of  Wheels: 2

DX2626-16BK EMPTY       29 lbs.

DX2626-16FWBK               38 lbs.



Inside Dimensions:    25 ¾ X 25 ¾   X  16(8 + 8 )

Outside Dimensions: 27 ½ X 27 ½ X 16 ¼

Ship as Dimensions:  29 X 29 X 18

Number of  Wheels: 2



DX2719-12BK EMPTY       21 lbs.

DX2719-12FWBK               27 lbs.



Inside Dimensions:    27 X  19   X  12 (8 +4  )

Outside Dimensions: 28 ½ X 21 X 14 ½

Ship as Dimensions:  30 X 22 X 15

Number of  Wheels: 2

DX2719-14BK EMPTY       23 lbs.

DX2719-14FWBK               29 lbs.



Inside Dimensions:    27 X  19   X  14 (8 + 6  )

Outside Dimensions:  28 ½ X 21 X 16 ½

Ship as Dimensions:  30 X 22 X 17

Number of  Wheels: 2

DX3023-10BK EMPTY       25 lbs.

DX3023-10FWBK               32 lbs.



Inside Dimensions:    30 X 23 X 10 (6 + 4 )

Outside Dimensions:  31 ½ X 25 X 12

Ship as Dimensions:  33 X 26 X 13

Number of  Wheels: 4

DX2719-16BK EMPTY       24 lbs.

DX2719-16FWBK               31 lbs.



Inside Dimensions:    27 X  19   X  16 (8 + 8 )

Outside Dimensions:  28 ½ X 21 X 18 ½

Ship as Dimensions:  30 X 22 X 19

Number of  Wheels:

DX3023-12BK EMPTY       25 lbs.

DX3023-12FWBK               32 lbs.



Inside Dimensions:    30 X 23 X 102(8 + 4 )

Outside Dimensions:  31 ½ X 25 X 14 ½

Ship as Dimensions:  33 X 26 X 15

Number of  Wheels: 4

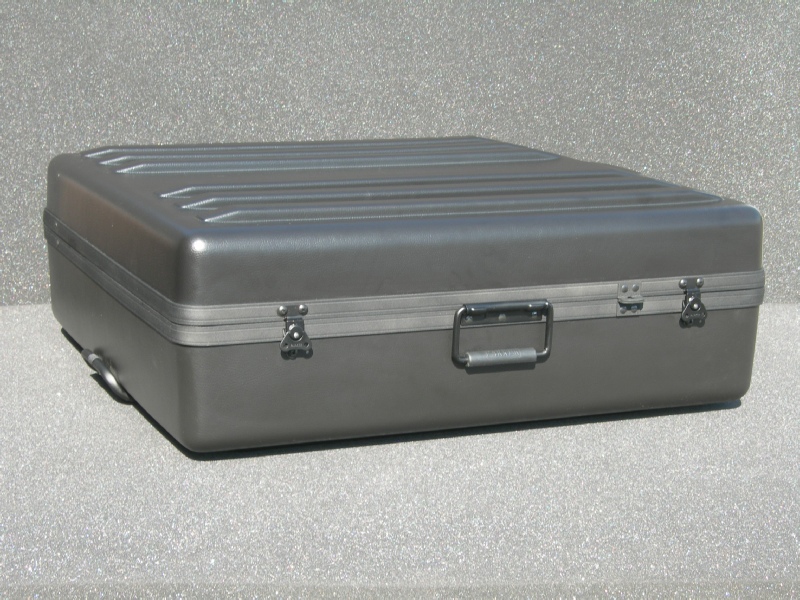

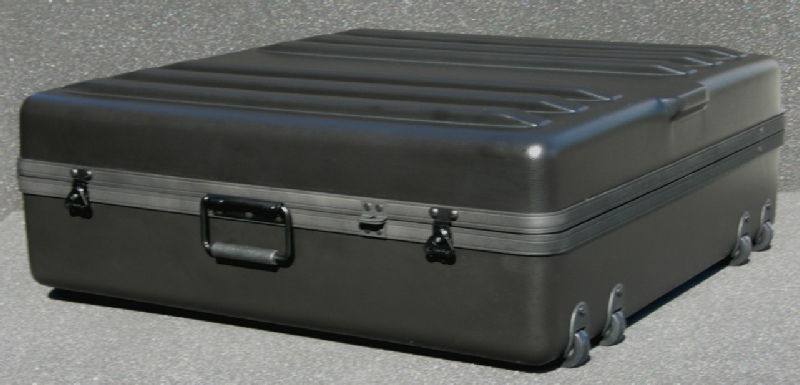

DX3030-10BK EMPTY       30 lbs.

DX3030-10FWBK               39 lbs.



Inside Dimensions:    30 X 30 X 10 (6 + 4 )

Outside Dimensions:  31 ½ X 31 ½  X 11 ½

Ship as Dimensions:  33 X 33 X 13

Number of  Wheels: 4

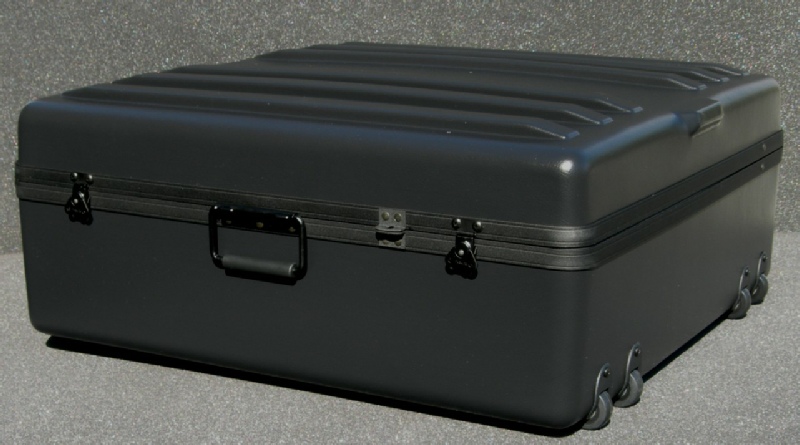

DX3030-12BK EMPTY       31 lbs.

DX3030-12FWBK               41 lbs.



Inside Dimensions:    30 X 30 X 12 (8 + 4 )

Outside Dimensions:  31 ½ X 31 ½  X 13 ¾

Ship as Dimensions:  33 X 33 X 15

Number of  Wheels: 4

DX3030-14BK EMPTY       33 lbs.

DX3030-14FWBK               43 lbs.



Inside Dimensions:    30 X 30 X 14 (8 + 6 )

Outside Dimensions:  31 ½ X 31 ½  X 15 ½

Ship as Dimensions:  33 X 33 X 17

Number of  Wheels: 4

DX3030-16BK EMPTY       35 lbs.

DX3030-16FWBK               46 lbs.



Inside Dimensions:    30 X 30 X 16 (8 + 8 )

Outside Dimensions:  31 ½ X 31 ½  X 17 ½

Ship as Dimensions:  33 X 33 X 19

Number of  Wheels: 4

DX3023-14BK EMPTY       29 lbs.

DX3023-14FWBK               36 lbs.



Inside Dimensions:    30 X 23 X 14 (8 + 6 )

Outside Dimensions:  31 ½ X 25 X 16 ½

Ship as Dimensions:  33 X 26 X 17

Number of  Wheels: 4

DX3023-16BK EMPTY       31 lbs.

DX3023-16FWBK               39 lbs.



Inside Dimensions:    30 X 23 X 16 (8+ 8 )

Outside Dimensions:  31 ½ X 25 X 18 ½

Ship as Dimensions:  33 X 26 X 19

Number of  Wheels: 4

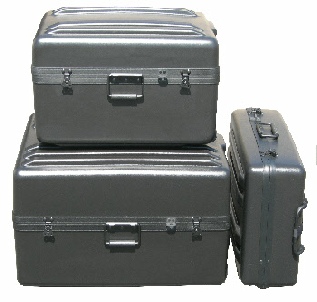

Heavy Duty Deluxe “Tote” Wheeled Cases

(42 Sizes)

•Case Material: Black - HMPE Polyethylene*

•Valance:: Heavy Duty Aluminum - Powder Coated

•Hinge: Heavy Duty Full Length Aluminum w/ 3/16” Dia. Pin

•Latches: Quarter Turn Military Style w/Spring Tension

•Handles: Heavy Duty Steel Spring Loaded w/Rubber Grip

•Containers can be padlocked

•Wheels: Recessed Ball Bearing w/Steel Housing

•Steel Pullout Handle (Retracts into case when not in use)

•Available: Empty-2” Foam Lined- Full Foam- Custom Foam**

* Marerial is resistant to solvents and will not blister or peel, withstands temperature variation of -180 degrees F to +180 degrees F

** Five case minimum for custom foam

Phone: 707-994-6363
